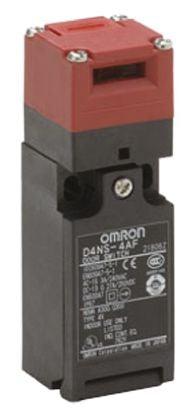

D4NS Safety Interlock Switch, Plastic, 3NC [D4NS-4DF]; 549-552
by Omron
0₫
Mã kho: 549552
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection Type | M20 |
| Lock Style | Key |
| Normal State Configuration | 3NC |
| Housing Material | Plastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Safety Contacts | 3NC |
| Number of Head Directions | 4 |
| Series | D4NS |
| Length | 96mm |
| Maximum Operating Temperature | +70°C |
| Dimensions | 96 x 31 x 30 mm |
| Minimum Operating Temperature | -30°C |
| Depth | 30mm |
| IP Rating | IP67 |
| Maximum Current | 0.125 |
| Width | 31mm |
