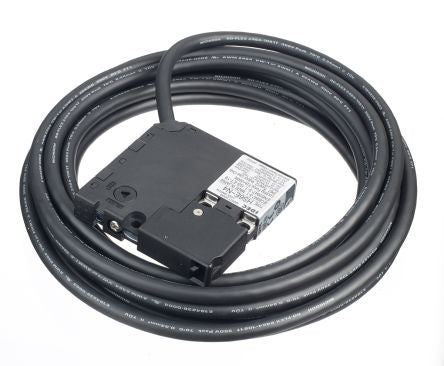

HS6E Safety Interlock Switch, 1NC/1NC (Main), 1NC/1NO (Door Monitor), 1NO (Lock Monitor), Spring Lock Lock [HS6E-N44B05-G]; 179-4754
by Idec
0₫
Mã kho: 1794754
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection Type | Cable |
| Lock Style | Key |
| Normal State Configuration | 1NC/1NC (Main), 1NC/1NO (Door Monitor), 1NO (Lock Monitor) |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 30V |
| Safety Contacts | 1NC+1NC (Main), 1NC/1NO (Door Monitor), 1NO (Lock Monitor) |
| Lock Type | Spring Lock |
| Series | HS6E |
| IP Rating | IP67 |
| Length | 75mm |
| Width | 15mm |
| Depth | 75mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 75 x 15 x 75 mm |
| Maximum Operating Temperature | +50°C |
| Maximum Current | 2.5 A |
