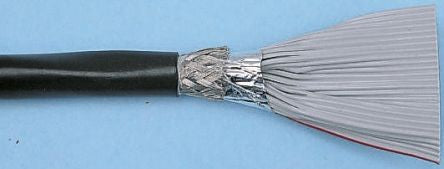

3M 14 Way Screened Round Ribbon Cable, 16.5 mm Width [3659-14 100FT]; 342-8619
by 3M
0₫
Mã kho: 3428619
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Ways | 14 |
| Width | 16.5 mm |
| Pitch | 1.27mm |
| Reel Length | 30m |
| Voltage Rating | 300 V |
| Capacitance | 90.88 pF/m |
| Characteristic Impedance | 106 Ω |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Conductor Strand Type | Stranded |
| Sheath Colour | Black |
| Number of Strands | 7 |
| Core Strands | 13332 |
| Screened/Unscreened | Screened |
| Size of Strands | 36 AWG |
| Cable Shape | Ribbon |
| Outer Diameter | 7.9mm |
| American Wire Gauge | 28 |
