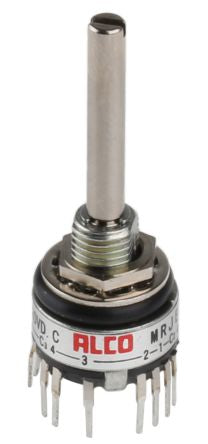

TE Connectivity, 4 Position 3P Rotary Switch, 400 mA @ 20 V, Through Hole [MRJE3-404]; 136-1616
0₫
Mã kho: 1361616
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | 3P |
| Contact Current Rating | 400 mA @ 20 V |
| Number of Switch Positions | 4 |
| Number of Contacts | 3 |
| Voltage Rating | 20V ac/dc |
| Depth | 11.94mm |
| Width | 11.94mm |
| Dimensions | 11.94 x 11.94 x 34.04mm |
| Terminal Type | Through Hole |
| Height | 34.04mm |
| Contact Material | Brass |
| IP Rating | IP67 |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Case Material | Epoxy |
