| THÔNG SỐ KỸ THUẬT | |
|---|---|

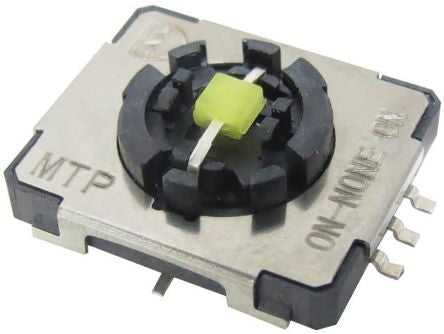

| Series | MTP |
| Contact Current Rating | 50 mA |
| Voltage Rating | 12V dc |
| Depth | 4.9mm |
| Width | 15.15mm |
| Dimensions | 4.9 x 15.15 x 13.35mm |
| Mounting Type | PCB |
| Terminal Type | Solder |
| Angle of Throw | 80° |
| Maximum Operating Temperature | +70°C |
| Actuator Colour | Black |
| Height | 13.35mm |
| Mechanical Life | 10000 cycles, 30000 cycles |
| Case Material | Stainless Steel |
| Minimum Operating Temperature | -20°C |
| Contact Material | Copper Over Silver |
| Illuminated | No |
