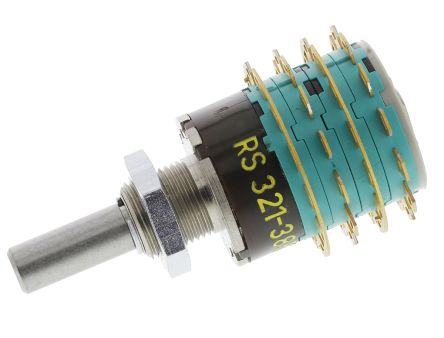

NSF GX non short, 6 Position 4P6T Rotary Switch, 250 mA @ 60 V, Solder [500401-000-000-000]; 321-385
by NSF
0₫
Mã kho: 321385
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | 4P6T |
Series | GX non short |
Contact Current Rating | 250 mA @ 60 V |
Number of Switch Positions | 6 |
Number of Contacts | 4 |
Voltage Rating | 125V ac |
Diameter | 25.5mm |
Dimensions | 25.5 x 44mm |
Mounting Type | Panel Mount |
Mounting Hole Size | 8.5 x 10 mm |
Terminal Type | Solder |
Mechanical Life | 25000Operations |
Case Material | Diallylphthalate |
Contact Material | Gold |
Minimum Operating Temperature | -40°C |
Height | 44mm |
Maximum Operating Temperature | +85°C |
