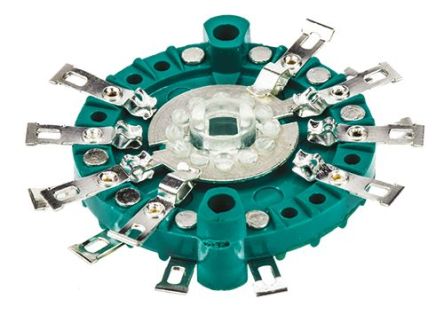

NSF, 3 Position 4P3T Rotary Switch, 150 mA @ 250 V ac, Solder [457844/1/MA]; 352-222
by NSF
0₫
Mã kho: 352222
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | 4P3T |
Contact Current Rating | 150 mA @ 250 V ac |
Number of Switch Positions | 3 |
Number of Contacts | 4 |
Voltage Rating | 300V ac/dc |
Diameter | 25.4mm |
Mounting Type | Panel Mount |
Terminal Type | Solder |
Contact Material | Silver Plated Brass |
Maximum Operating Temperature | +100°C |
Contact Type | Non-Shorting |
Minimum Operating Temperature | -40°C |
