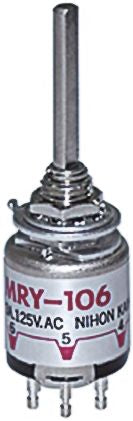

NKK Switches, 5 Position SP Rotary Switch, 0.1 → 100 mA @ 20 mV → 28 V, 2 A @ 30 V dc, 3 A @ 125 V ac [MRY-106]; 354-3948
by NKK Switches
0₫
Mã kho: 3543948
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SP |
| Contact Current Rating | 0.1 → 100 mA @ 20 mV → 28 V, 2 A @ 30 V dc, 3 A @ 125 V ac |
| Number of Switch Positions | 5 |
| Number of Contacts | 1 |
| Voltage Rating | 30 V dc, 125 V ac |
| Depth | 14mm |
| Width | 14mm |
| Mounting Type | PCB |
| Terminal Type | Solder |
| Height | 42.5mm |
| Contact Material | Silver Plated Copper |
| Minimum Operating Temperature | -10°C |
| Angle of Throw | 18° |
| Maximum Operating Temperature | +70°C |
| Mechanical Life | 15000Operations |
| Case Material | Brass |
