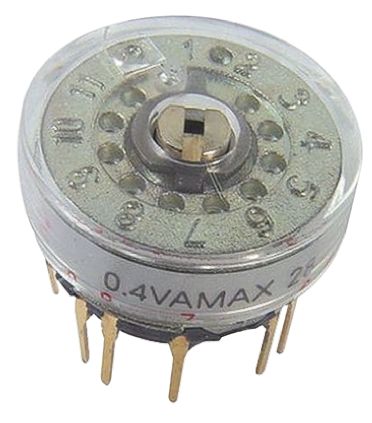

NKK Switches, 2 → 12 Position SP12T Rotary Switch, 0.1 → 100 mA, Through Hole [MR-F112]; 428-9487
by NKK Switches
0₫
Mã kho: 4289487
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SP12T |
| Contact Current Rating | 0.1 → 100 mA |
| Number of Switch Positions | 2 → 12 |
| Number of Contacts | 1 |
| Diameter | 14mm |
| Dimensions | 14 x 8.2mm |
| Mounting Type | PCB |
| Mounting Hole Size | 0.8 mm |
| Terminal Type | Through Hole |
| Minimum Operating Temperature | -10°C |
| Contact Material | Gold Plated Phosphor Bronze |
| Mechanical Life | 30000Operations |
| Maximum Operating Temperature | +70°C |
| Height | 8.2mm |
| Case Material | Zinc Plated Zinc Alloy |
