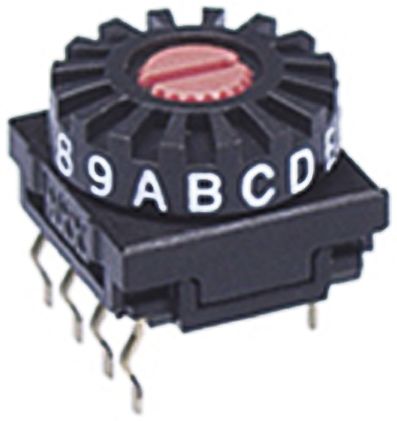

NKK Switches, 16 Position, Hexadecimal Rotary Switch, 100 mA, Through Hole [FR01-SR16P-ST]; 197-959
by NKK Switches
0₫
Mã kho: 197959
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Current Rating | 100 mA |
| Number of Switch Positions | 16 |
| Voltage Rating | 5V dc |
| Output Coding | Hexadecimal |
| Depth | 10mm |
| Width | 10mm |
| Dimensions | 10 x 10 x 7.2mm |
| Mounting Type | PCB |
| Mounting Hole Size | 0.8 → 1 mm |
| Terminal Type | Through Hole |
| Legend Text | 0-9, A-F |
| Height | 7.2mm |
| Case Material | Glass Fibre Reinforced PA |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 10000Operations |
| Minimum Operating Temperature | -25°C |
| Contact Material | Gold Plated Phosphor Bronze (Stationary); Gold Plated Copper Alloy (Movable) |
| Legend Text Colour | White |
