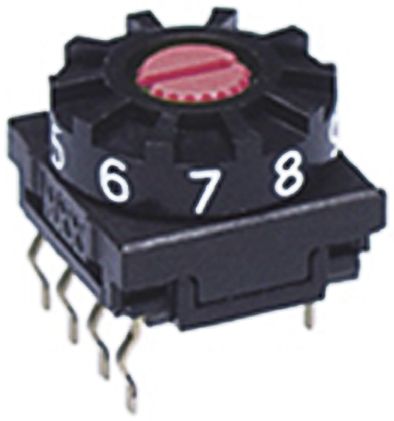

NKK Switches, 10 Position, Decimal Rotary Switch, 100 mA, Through Hole [FR01-SR10P-ST]; 197-943
by NKK Switches
0₫
Mã kho: 197943
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Current Rating | 100 mA |
| Number of Switch Positions | 10 |
| Voltage Rating | 5V dc |
| Output Coding | Decimal |
| Depth | 10mm |
| Width | 10mm |
| Dimensions | 10 x 10 x 7.2mm |
| Mounting Type | PCB |
| Mounting Hole Size | 0.8 → 1 mm |
| Terminal Type | Through Hole |
| Maximum Operating Temperature | +85°C |
| Legend Text Colour | White |
| Legend Text | 0-9 |
| Case Material | Glass Fibre Reinforced PA |
| Mechanical Life | 10000Operations |
| Contact Material | Gold Plated Phosphor Bronze (Stationary); Gold Plated Copper Alloy (Movable) |
| Minimum Operating Temperature | -25°C |
| Height | 7.2mm |
