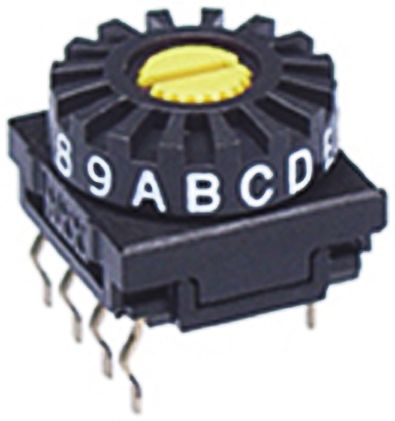

NKK Switches, 16 Position, Hexadecimal Complement Rotary Switch, 100 mA, Through Hole [FR01-SC16P-ST]; 197-937
by NKK Switches
0₫
Mã kho: 197937
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Current Rating | 100 mA |
Number of Switch Positions | 16 |
Voltage Rating | 5V dc |
Output Coding | Hexadecimal Complement |
Depth | 10mm |
Width | 10mm |
Dimensions | 10 x 10 x 7.2mm |
Mounting Type | PCB |
Mounting Hole Size | 0.8 → 1 mm |
Terminal Type | Through Hole |
Legend Text Colour | White |
Legend Text | 0-9, A-F |
Height | 7.2mm |
Minimum Operating Temperature | -25°C |
Mechanical Life | 10000Operations |
Maximum Operating Temperature | +85°C |
Case Material | Glass Fibre Reinforced PA |
Contact Material | Gold Plated Phosphor Bronze (Stationary); Gold Plated Copper Alloy (Movable) |
