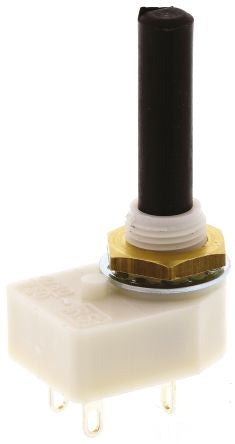

Lorlin, 2 Position DPST Rotary Switch, 4 A @ 250 V ac, Solder [RMS1016]; 316-800
by Lorlin
0₫
Mã kho: 316800
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPST |
| Contact Current Rating | 4 A @ 250 V ac |
| Number of Switch Positions | 2 |
| Number of Contacts | 2 |
| Voltage Rating | 12 V dc, 250 V ac |
| Depth | 48.55mm |
| Width | 17mm |
| Dimensions | 17 x 48.55 x 24mm |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Angle of Throw | 45° |
| Contact Material | Silver Cadmium Oxide |
| Mechanical Life | 15000Operations |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
| Height | 24mm |
