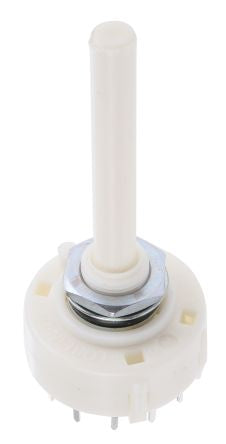

Lorlin, 6 Position DP6T Rotary Switch, 150 mA @ 250 V ac, Solder [CKF1050]; 711-8353
by Lorlin
0₫
Mã kho: 7118353
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | DP6T |
Contact Current Rating | 150 mA @ 250 V ac |
Number of Switch Positions | 6 |
Number of Contacts | 2 |
Voltage Rating | 250V ac/dc |
Diameter | 27.5mm |
Dimensions | 27.5 x 64.1mm |
Mounting Type | PCB |
Mounting Hole Size | 1.5 (PCB) mm, 10 (Panel) mm |
Terminal Type | Solder |
Legend Text Colour | White |
Height | 64.1mm |
Legend Text | 43842 |
IP Rating | IP65 |
Contact Material | Silver Plated Brass |
Case Material | Nylon 66 |
Maximum Operating Temperature | +85°C |
Mechanical Life | 10000Operations |
Minimum Operating Temperature | -30°C |
