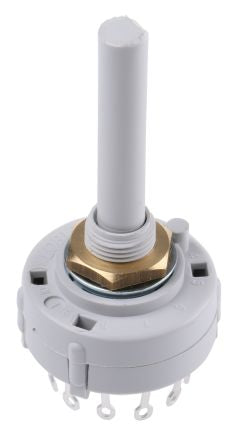

Lorlin, 3 Position 4P Rotary Switch, 150 mA@ 250 V ac, Solder Tab [CK1037]; 327-670
by Lorlin
0₫
Mã kho: 327670
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | 4P |
| Contact Current Rating | 150 mA@ 250 V ac |
| Number of Switch Positions | 3 |
| Number of Contacts | 4 |
| Voltage Rating | 250 V ac, 250 V dc |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mounting Type | Panel Mount |
| Terminal Type | Solder Tab |
| Contact Material | Silver Plated Brass |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Height | 59.1mm |
| Angle of Throw | 90° |
