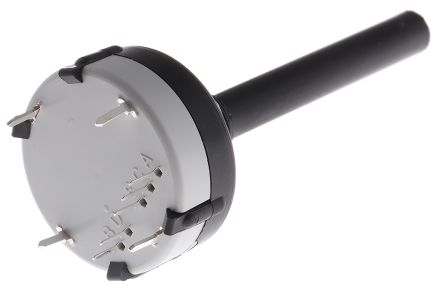

Lorlin, 16 Position, Hexadecimal SP Rotary Switch, 150 mA @ 50 V, Through Hole [BCK1001]; 655-3162
by Lorlin
0₫
Mã kho: 6553162
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | SP |
Contact Current Rating | 150 mA @ 50 V |
Number of Switch Positions | 16 |
Number of Contacts | 1 |
Voltage Rating | 250 V ac, 250 V dc |
Output Coding | Hexadecimal |
Depth | 27.5mm |
Width | 27.5mm |
Diameter | 27.5mm |
Dimensions | 27.5 (Dia.) x 64.1mm |
Mounting Type | PCB |
Mounting Hole Size | 27.5 mm |
Terminal Type | Through Hole |
Application | Electromechanical |
Maximum Operating Temperature | +85°C |
Contact Material | Gold Plated Silver |
Height | 64.1mm |
Actuator Colour | Black |
Mechanical Life | 10000Operations |
Case Material | Polyamide |
Minimum Operating Temperature | -30°C |
