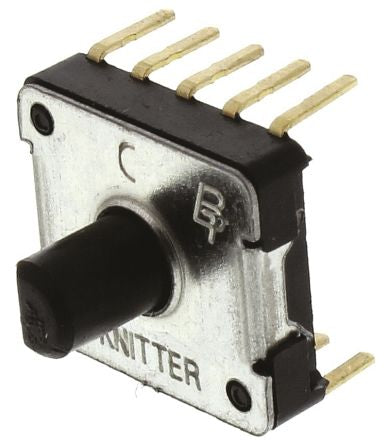

![KNITTER-SWITCH MRS 12V-19 7118410](http://nguyenxuong.com/cdn/shop/products/R7118410-01_390x444.jpg?v=1594013502)
KNITTER-SWITCH, 9 Position SP9T Rotary Switch, 100 mA @ 5 V dc, Through Hole [MRS 12V-19]; 711-8410
0₫
Mã kho: 7118410
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | SP9T |
Contact Current Rating | 100 mA @ 5 V dc |
Number of Switch Positions | 9 |
Number of Contacts | 1 |
Voltage Rating | 16V dc |
Depth | 11.4mm |
Width | 13mm |
Dimensions | 13 x 11.4 x 9.8mm |
Mounting Type | PCB |
Mounting Hole Size | 1 mm |
Terminal Type | Through Hole |
Height | 9.8mm |
Contact Material | Gold |
Case Material | Glass Fibre Reinforced PBT |
Minimum Operating Temperature | -20°C |
Mechanical Life | 10000Operations |
Maximum Operating Temperature | +80°C |
