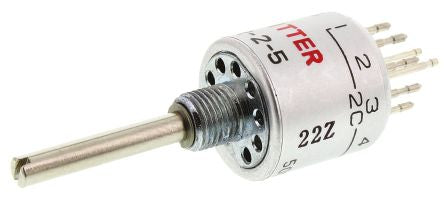

KNITTER-SWITCH, 5 Position DP5T Rotary Switch, 500 mA @ 24 V dc, Solder [MR 2 -5]; 711-8397
0₫
Mã kho: 7118397
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DP5T |
| Contact Current Rating | 500 mA @ 24 V dc |
| Number of Switch Positions | 5 |
| Number of Contacts | 2 |
| Voltage Rating | 24 V dc, 125 V ac |
| Diameter | 6.5mm |
| Dimensions | 6.5 x 40.8mm |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Application | Test and Instrumentation Switches |
| Case Material | Aluminium |
| Contact Material | Silver |
| Maximum Operating Temperature | +110°C |
| Minimum Operating Temperature | -45°C |
| Height | 40.8mm |
