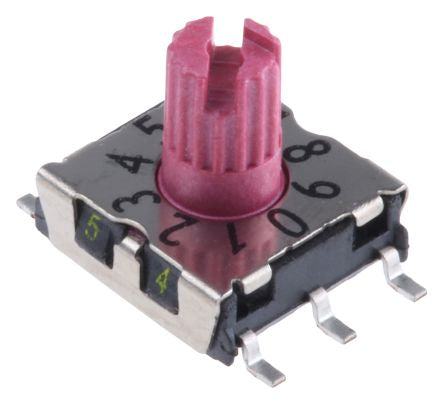

Hartmann, 10 Position, BCD Rotary Switch, 100 mA @ 42 V, Through Hole [P25SMT301]; 765-1138
by Hartmann
0₫
Mã kho: 7651138
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Current Rating | 100 mA @ 42 V |
| Number of Switch Positions | 10 |
| Number of Contacts | 6 |
| Voltage Rating | 42V |
| Output Coding | BCD |
| Depth | 2.5mm |
| Width | 7mm |
| Dimensions | 7 x 7 x 2.5mm |
| Mounting Type | Surface Mount |
| Terminal Type | Through Hole |
| Minimum Operating Temperature | -50°C |
| Contact Material | Gold Plated |
| Legend Text Colour | Black |
| Legend Text | 0-9, A-F |
| Height | 7mm |
| Maximum Operating Temperature | +125°C |
