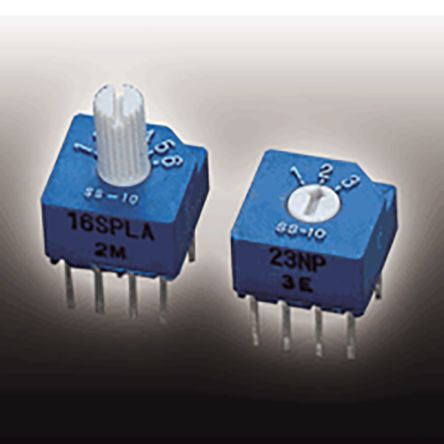

Copal Electronics SS-10, 3 Position DP3T Rotary Switch, 100 mA, Solder [SS-10-23NPE]; 179-6702
0₫
Mã kho: 1796702
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | DP3T |
Series | SS-10 |
Contact Current Rating | 100 mA |
Number of Switch Positions | 3 |
Number of Contacts | 3 |
Voltage Rating | 5 V dc, 50 V dc |
Depth | 10mm |
Width | 10mm |
Dimensions | 10 x 10 x 7mm |
Mounting Type | Through Hole |
Terminal Type | Solder |
Contact Type | Non-Shorting |
Height | 7mm |
Maximum Operating Temperature | +70°C |
Angle of Throw | 36° |
Contact Material | Copper Alloy |
Minimum Operating Temperature | -25°C |
Case Material | Polybutylene Terephthalate |
