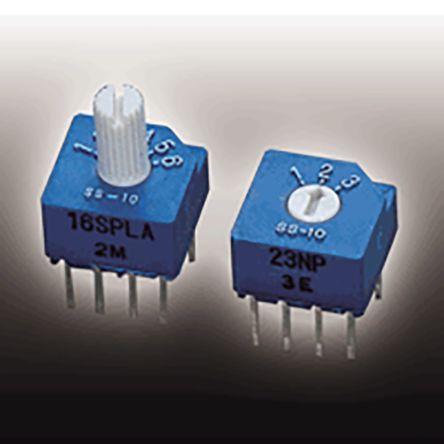

Copal Electronics S-2050, 4 Position SP4T Rotary Switch, 100 mA, Solder [S-2050]; 179-6353
0₫
Mã kho: 1796353
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | S-2050 |
| Contact Configuration | SP4T |
| Contact Current Rating | 100 mA |
| Number of Switch Positions | 4 |
| Number of Contacts | 4 |
| Voltage Rating | 5 V dc, 50 V dc |
| Depth | 10mm |
| Width | 10mm |
| Dimensions | 10 x 10 x 7mm |
| Mounting Type | Through Hole |
| Terminal Type | Solder |
| Height | 7mm |
| Angle of Throw | 36° |
| Maximum Operating Temperature | +70°C |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -25°C |
| Case Material | Polybutylene Terephthalate |
| Contact Type | Non-Shorting |
