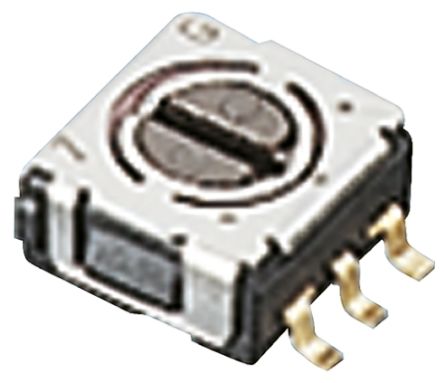

Copal Electronics DP Rotary Switch, 100 mA, Through Hole [CS-4-22YB]; 352-4773
0₫
Mã kho: 3524773
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | DP |
Contact Current Rating | 100 mA |
Number of Contacts | 2 |
Voltage Rating | 16V ac |
Depth | 5mm |
Width | 6.2mm |
Mounting Type | PCB |
Terminal Type | Through Hole |
Minimum Operating Temperature | -25°C |
Height | 2.3mm |
Maximum Operating Temperature | +70°C |
Angle of Throw | 45° |
Contact Material | Gold Plated Copper Alloy |
Case Material | Liquid Crystal Polymer |
