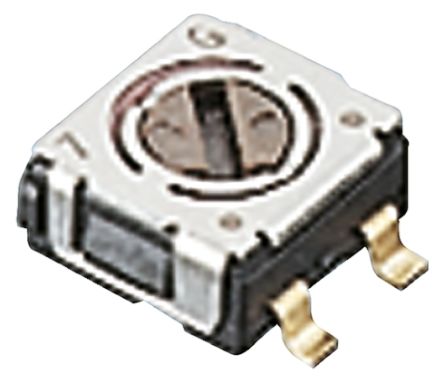

Copal Electronics SP Rotary Switch, 100 mA, Through Hole [CS-4-12XB]; 352-4751
0₫
Mã kho: 3524751
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | SP |
Contact Current Rating | 100 mA |
Number of Contacts | 1 |
Voltage Rating | 16V ac |
Depth | 5mm |
Width | 6.2mm |
Mounting Type | PCB |
Terminal Type | Through Hole |
Angle of Throw | 90° |
Contact Material | Gold Plated Copper Alloy |
Height | 2.3mm |
Case Material | Liquid Crystal Polymer |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +70°C |
