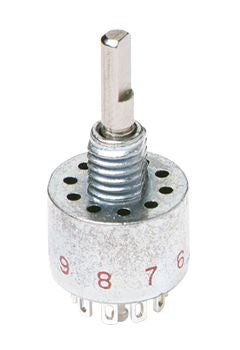

C & K, 5 Position Rotary Switch, 250 mA, Solder [MA05L1NCGD]; 154-4690
by C & K
0₫
Mã kho: 1544690
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Current Rating | 250 mA |
| Number of Switch Positions | 5 |
| Voltage Rating | 28 V dc, 125 V ac |
| Diameter | 5.16mm |
| Dimensions | 5.16 x 16.51mm |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Application | Industrial Equipment, Medical Equipment, Test Equipment |
| Contact Type | Non-Shorting |
| Case Material | Zinc Alloy |
| Minimum Operating Temperature | -30°C |
| Height | 16.51mm |
| Mechanical Life | 10000Cycles |
| Maximum Operating Temperature | +85°C |
| Angle of Throw | 36° |
| Contact Material | Copper Alloy |
| IP Rating | IP67 |
| Standards Met | CULus Recognized, UL 94V-0 |
