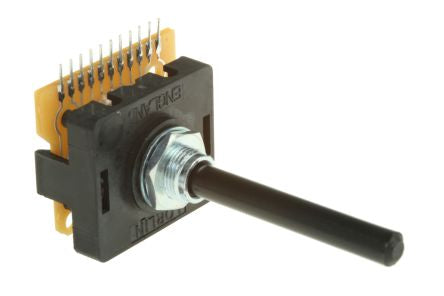

Apem, 10 Position SP10T Rotary Switch, 500 mA @ 250 V ac, Through Hole [PT 6461]; 161-6634
by APEM
0₫
Mã kho: 1616634
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SP10T |
| Contact Current Rating | 500 mA @ 250 V ac |
| Number of Switch Positions | 10 |
| Number of Contacts | 1 |
| Voltage Rating | 250V ac/dc |
| Depth | 31mm |
| Width | 35.25mm |
| Dimensions | 35.25 x 31 x 61.7mm |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Case Material | Nylon 66 |
| Height | 61.7mm |
| Contact Material | Silver Plated Phosphor Bronze |
| Minimum Operating Temperature | -30°C |
| Mechanical Life | 10000Operations |
| Maximum Operating Temperature | +85°C |
