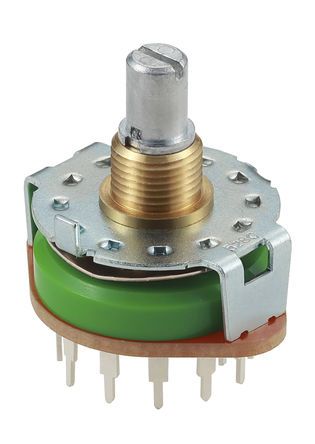

Alps Alpine, 5 Position DP5T Rotary Switch, 250 mA, Pc Pin [SRRM254700]; 123-9622
by Alps Alpine
0₫
Mã kho: 1239622
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DP5T |
| Contact Current Rating | 250 mA |
| Number of Switch Positions | 5 |
| Number of Contacts | 2 |
| Voltage Rating | 30V dc |
| Diameter | 31mm |
| Dimensions | 31 (Dia.) x 26.5mm |
| Mounting Type | PCB |
| Mounting Hole Size | 1.5 mm |
| Terminal Type | PC Pin |
| Application | DVD Player, FP-TV |
| Contact Type | Shorting |
| Minimum Operating Temperature | -10°C |
| Angle of Throw | 30° |
| Maximum Operating Temperature | +60°C |
| Actuator Colour | Grey |
| Height | 26.5mm |
| Mechanical Life | 10000Cycles |
