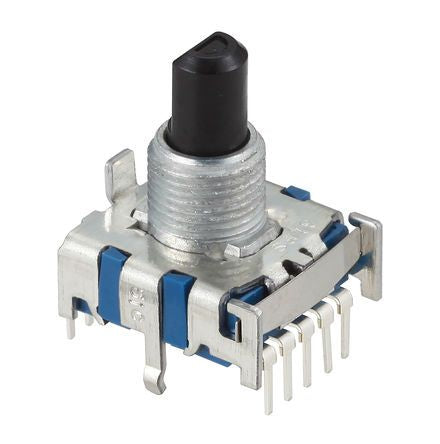

Alps Alpine, 5 Position SP5T Rotary Switch, 300 mA, Pc Pin [SRBV151102]; 123-9614
by Alps Alpine
0₫
Mã kho: 1239614
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | SP5T |
Contact Current Rating | 300 mA |
Number of Switch Positions | 5 |
Number of Contacts | 1 |
Voltage Rating | 16V dc |
Depth | 18.5mm |
Width | 22.5mm |
Dimensions | 22.5 x 18.5 x 16.2mm |
Mounting Type | PCB |
Mounting Hole Size | 0.9 mm |
Terminal Type | PC Pin |
Application | Home Appliances, Personal Audio |
Maximum Operating Temperature | +85°C |
Contact Type | Non-Shorting |
Minimum Operating Temperature | -10°C |
Height | 16.2mm |
Angle of Throw | 30° |
Actuator Colour | Grey |
Mechanical Life | 10000Cycles |
