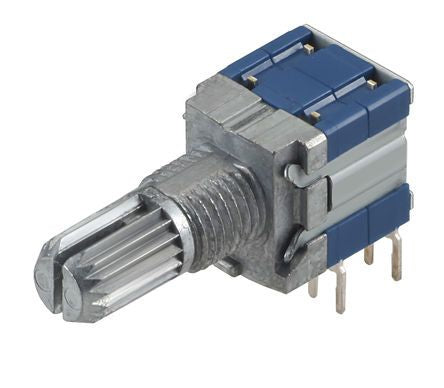

Alps Alpine, 5 Position SP5T Rotary Switch, 100 mA, Pc Pin [SRBM150500]; 123-9604
by Alps Alpine
0₫
Mã kho: 1239604
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SP5T |
| Contact Current Rating | 100 mA |
| Number of Switch Positions | 5 |
| Number of Contacts | 1 |
| Voltage Rating | 16V dc |
| Depth | 11mm |
| Width | 27.5mm |
| Dimensions | 27.5 x 10 x 11mm |
| Mounting Type | PCB |
| Mounting Hole Size | 0.9 mm |
| Terminal Type | PC Pin |
| Application | Car AV Equipment |
| Contact Type | Non-Shorting |
| Minimum Operating Temperature | -30°C |
| Angle of Throw | 30° |
| Mechanical Life | 10000Cycles |
| Height | 10mm |
| Actuator Colour | Grey |
| Maximum Operating Temperature | +85°C |
