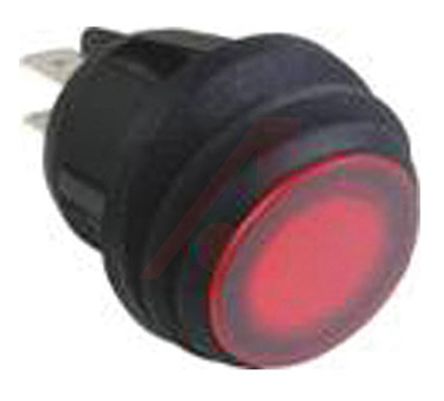

ZF Illuminated Double Pole Single Throw (DPST), Latching Rocker Switch Panel Mount [KDH3ALA2RBB]; 868-1660
by ZF
0₫
Mã kho: 8681660
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Diameter | 20.2mm |
| Contact Current Rating | 16 A |
| Illuminated | Yes |
| Actuator Colour | Red |
| Mounting Type | Panel Mount |
| IP Rating | IP56 |
| Terminal Type | Quick Connect |
| Actuator Shape | Round |
| Maximum Operating Temperature | +85°C |
| DC Voltage Rating | 14 V, 28 V |
| Minimum Operating Temperature | -25°C |
| Contact Resistance | 50mΩ |
| Panel Cut Out Size | 20.2 (Dia.)mm |
| Operating Temperature Range | -25 → +85°C |
| Case Material | Nylon 66 |
| Contact Material | Silver Alloy |
| AC Voltage Rating | 125 V, 250 V |
