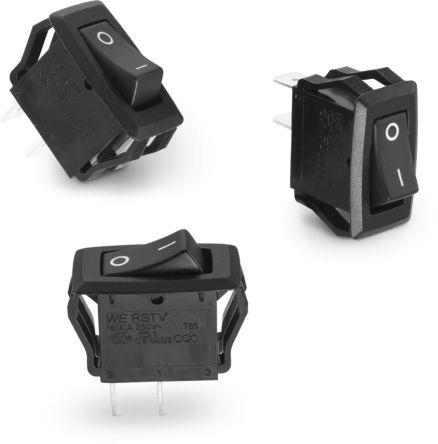

27.6 x 13.8 mm Panel Cut-Out Rocker Swit [471005264152]; 185-4344
0₫
Mã kho: 1854344
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Switch Operation | On-None-Off |
Panel Cut Out Width | 27.6mm |
Panel Cut Out Height | 13.8mm |
Contact Current Rating | 16 A |
Illuminated | No |
Actuator Colour | Black |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Legend Text | O I |
Actuator Shape | Rectangular |
Operating Temperature Range | 0 → +85°C |
DC Voltage Rating | 28V |
Maximum Operating Temperature | +85°C |
Contact Material | Copper Alloy |
AC Voltage Rating | 250V |
Mechanical Life | 10000Cycles |
Panel Cut Out Size | 27.6 x 13.8mm |
Contact Resistance | 50mΩ |
Minimum Operating Temperature | 0°C |
