![TE Connectivity PRASA1-16F-BB0BW 7182247](http://nguyenxuong.com/cdn/shop/products/F7182247-01_ffef97d1-3ad3-48bb-89d4-ac71de59c8ed_398x445.jpg?v=1593744669)

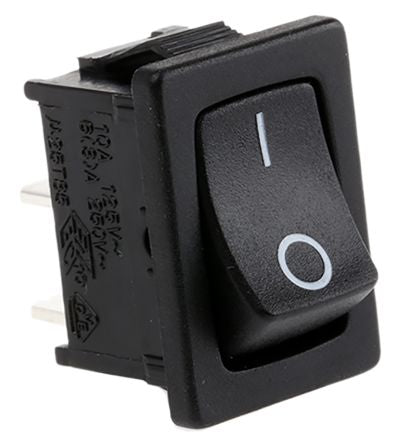

TE Connectivity Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [PRASA1-16F-BB0BW]; 718-2247
0₫
Mã kho: 7182247
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Switch Operation | On-None-Off |
Panel Cut Out Width | 19.2mm |
Panel Cut Out Height | 13mm |
Contact Current Rating | 10 A @ 250 V ac |
Illuminated | No |
Actuator Colour | Black |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Legend Text | On (symbol); Off (symbol) |
Mechanical Life | 100000Operations |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -20 → +85°C |
Minimum Operating Temperature | -20°C |
Legend Text Colour | White |
DC Voltage Rating | 12 V, 28 V |
AC Voltage Rating | 125 V, 250 V |
Contact Material | Silver Tin Oxide |
Case Material | Nylon 66 |
Panel Cut Out Size | 13 x 19.2mm |
Contact Resistance | 100mΩ |
