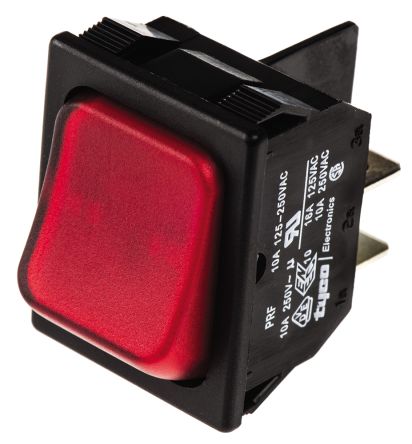

TE Connectivity Illuminated Double Pole Single Throw (DPST), Latching Rocker Switch Panel Mount [1634201-4]; 495-4282
0₫
Mã kho: 4954282
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Double Pole Single Throw (DPST) |
Switch Operation | On-Off |
Panel Cut Out Width | 30.2mm |
Panel Cut Out Height | 22.2mm |
Contact Current Rating | 10 A @ 250 V ac |
Illuminated | Yes |
Actuator Colour | Red |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Actuator Shape | Rectangular |
AC Voltage Rating | 125 V, 250 V |
Case Material | Nylon 66 |
Contact Resistance | 50mΩ |
Minimum Operating Temperature | -20°C |
Contact Material | Silver Alloy |
Mechanical Life | 100000Operations |
Operating Temperature Range | -20 → +85°C |
Maximum Operating Temperature | +85°C |
Panel Cut Out Size | 22.2 x 30.2mm |
