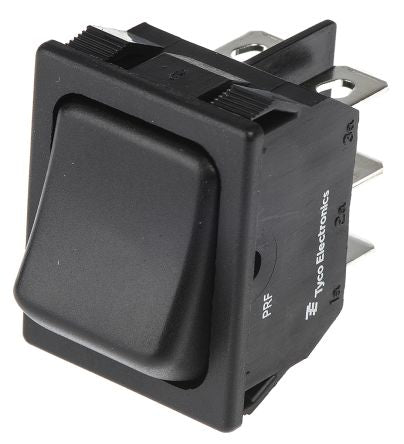

TE Connectivity Double Pole Double Throw (DPDT), On-Off-On Rocker Switch Panel Mount [1-1634201-0]; 495-4349
0₫
Mã kho: 4954349
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-Off-On |
| Panel Cut Out Width | 22.2mm |
| Panel Cut Out Height | 30.2mm |
| Contact Current Rating | 16 A @ 125 V ac |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Contact Material | Silver Tin Oxide |
| Contact Resistance | 50mΩ |
| Case Material | Nylon 66 |
| AC Voltage Rating | 125 V, 250 V |
| Mechanical Life | 100000Operations |
| Panel Cut Out Size | 30.2 x 22.2mm |
