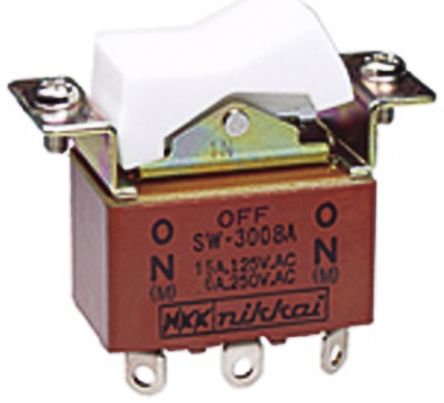

NKK Switches Double Pole Double Throw (DPDT), (On)-Off-(On) Rocker Switch Panel Mount [SW-3008A]; 428-9437
by NKK Switches
0₫
Mã kho: 4289437
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | (On)-Off-(On) |
| Panel Cut Out Width | 12.5mm |
| Panel Cut Out Height | 23mm |
| Contact Current Rating | 15 A |
| Illuminated | No |
| Actuator Colour | White |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Actuator Shape | Rectangular |
| Contact Material | Silver Plated Silver Copper Alloy |
| AC Voltage Rating | 125V |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -10°C |
| Mechanical Life | 30000Operations |
| Panel Cut Out Size | 23 x 12.5mm |
| Contact Resistance | 10mΩ |
| Operating Temperature Range | -10 → +70°C |
