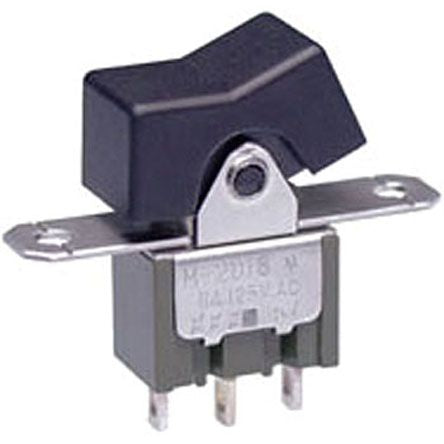

NKK Switches Single Pole Double Throw (SPDT), On-Off-On Rocker Switch Panel, PCB, Snap-In [M2018TJG01]; 125-1908
by NKK Switches
0₫
Mã kho: 1251908
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | On-Off-On |
| Panel Cut Out Width | 12.5mm |
| Panel Cut Out Height | 15.9mm |
| Contact Current Rating | 100 mA |
| Illuminated | No |
| Mounting Type | Panel, PCB, Snap-In |
| Terminal Type | Solder |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 12.5 x 15.9mm |
| Operating Temperature Range | -30 → +85°C |
| AC Voltage Rating | 28V |
| Maximum Operating Temperature | +85°C |
| Contact Material | Copper |
| Minimum Operating Temperature | -30°C |
| DC Voltage Rating | 28V |
| Contact Resistance | 10mΩ |
| Case Material | Diallyl Phthalate |
