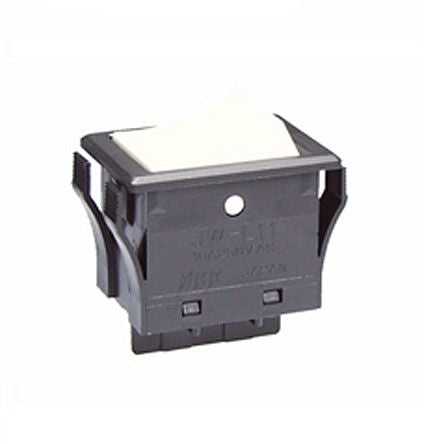

NKK Switches Single Pole Single Throw (SPST), On-None-Off Rocker Switch Panel Mount [JWL11RBA]; 125-1901
by NKK Switches
0₫
Mã kho: 1251901
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 20.5mm |
| Panel Cut Out Height | 29.5mm |
| Contact Current Rating | 16 A |
| Illuminated | No |
| Actuator Colour | White |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect, Solder Lug |
| Actuator Shape | Rectangular |
| Minimum Operating Temperature | -25°C |
| Panel Cut Out Size | 20.5 x 29.5mm |
| Maximum Operating Temperature | +70°C |
| Case Material | Polyamide |
| Contact Resistance | 10mΩ |
| Contact Material | Silver Alloy |
| Operating Temperature Range | -25 → +70°C |
| AC Voltage Rating | 125 V, 250 V |
