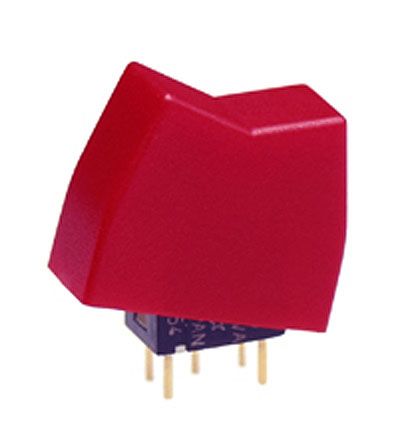

NKK Switches Single Pole Double Throw (SPDT), Latching Rocker Switch Through Hole [G12KP]; 125-1895
by NKK Switches
0₫
Mã kho: 1251895
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | On-(On) |
| Contact Current Rating | 100 mA |
| Illuminated | No |
| Mounting Type | Through Hole |
| Terminal Type | PC Pin |
| Actuator Shape | Rectangular |
| Maximum Operating Temperature | +85°C |
| Contact Material | Phosphor Bronze |
| AC Voltage Rating | 28V |
| Case Material | Glass Fibre Reinforced Polyamide |
| Operating Temperature Range | -25 → +85°C |
| Minimum Operating Temperature | -25°C |
| DC Voltage Rating | 28V |
| Contact Resistance | 80mΩ |
