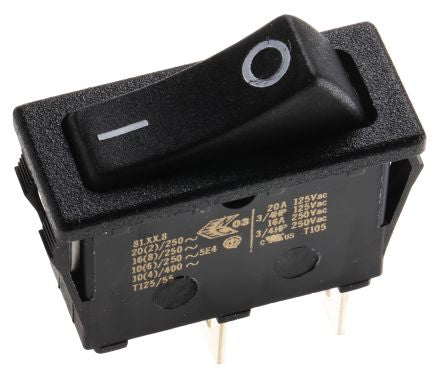

Molveno Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [SX81111811210000]; 793-2487
by Molveno
0₫
Mã kho: 7932487
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 11mm |
| Panel Cut Out Height | 30mm |
| Contact Current Rating | 20 A @ 250 V ac |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Legend Text | On (symbol); Off (symbol) |
| Actuator Shape | Rectangular |
| Operating Temperature Range | Maximum of +125°C |
| Panel Cut Out Size | 30 x 11mm |
| AC Voltage Rating | 250V |
| Legend Text Colour | White |
| Case Material | Plastic |
| Maximum Operating Temperature | +125°C |
| Mechanical Life | 50000Operations |
