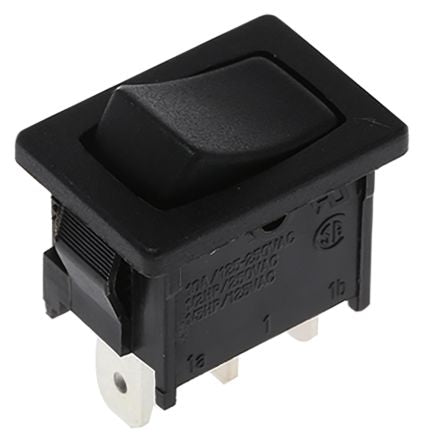

Molveno Single Pole Double Throw (SPDT), Latching Rocker Switch Panel Mount [A113311000000]; 793-2443
by Molveno
0₫
Mã kho: 7932443
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | On-(On) |
| Panel Cut Out Width | 13mm |
| Panel Cut Out Height | 19mm |
| Contact Current Rating | 10 A @ 250 V ac |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Mechanical Life | 50000Operations |
| Maximum Operating Temperature | +125°C |
| Operating Temperature Range | Maximum of +125°C |
| AC Voltage Rating | 250V |
| Panel Cut Out Size | 19 x 13mm |
