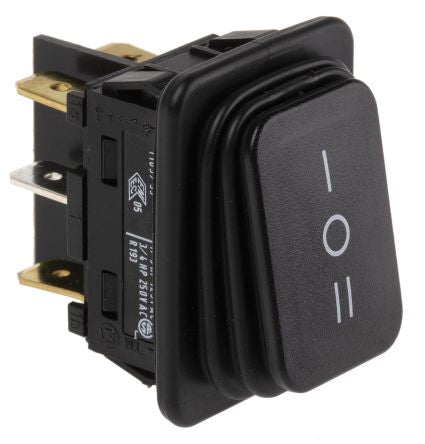

Marquardt Double Pole Double Throw (DPDT), On-Off-On Rocker Switch Panel Mount [1939.3119]; 741-0836
by Marquardt
0₫
Mã kho: 7410836
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-Off-On |
| Panel Cut Out Width | 22mm |
| Panel Cut Out Height | 30mm |
| Contact Current Rating | 12 A @ 250 V ac |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP65 |
| Terminal Type | Quick Connect |
| Legend Text | I O II |
| Actuator Shape | Rectangular |
| Case Material | Polyamide |
| Maximum Operating Temperature | +55°C |
| Contact Resistance | 100mΩ |
| Panel Cut Out Size | 30.2 x 22mm |
| Legend Text Colour | White |
| Operating Temperature Range | -30 → +55°C |
| Contact Material | Silver |
| Minimum Operating Temperature | -30°C |
| Mechanical Life | 50000Operations |
| AC Voltage Rating | 250V |
