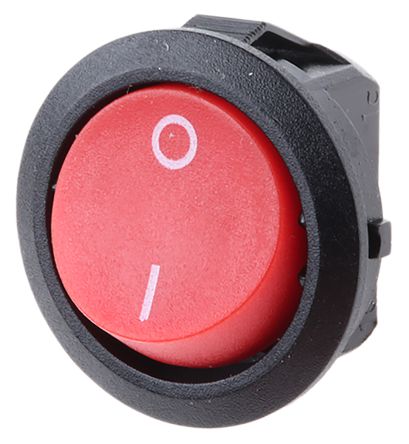

Marquardt Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [1881.1104]; 575-141
by Marquardt
0₫
Mã kho: 575141
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Diameter | 20.3mm |
| Contact Current Rating | 15 A |
| Illuminated | No |
| Actuator Colour | Red |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Terminal Type | Quick Connect |
| Legend Text | I, O |
| Actuator Shape | Round |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -20 → +55°C |
| Panel Cut Out Size | 20 (Dia.)mm |
| AC Voltage Rating | 250V |
| Minimum Operating Temperature | -20°C |
| Contact Material | Silver Plated Silver |
| Contact Resistance | 100mΩ |
| Case Material | Polyamide |
| Maximum Operating Temperature | +55°C |
