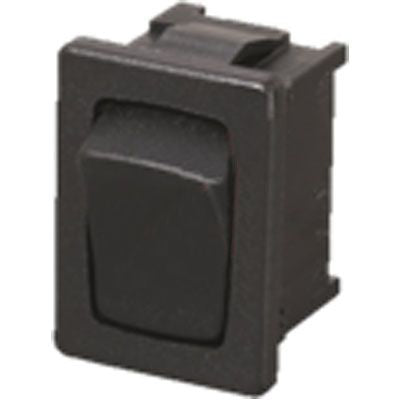

![Marquardt 1808.2704 9070660](http://nguyenxuong.com/cdn/shop/products/R9070660-01_400x400.jpg?v=1594167810)
Marquardt Single Pole Double Throw (SPDT), On-Off-On Rocker Switch Panel Mount [1808.2704]; 907-0660
by Marquardt
0₫
Mã kho: 9070660
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Switch Operation | On-Off-On |
Panel Cut Out Width | 19.2mm |
Panel Cut Out Height | 12.9mm |
Contact Current Rating | 0.25 |
Illuminated | No |
Actuator Colour | Grey |
Mounting Type | Panel Mount |
IP Rating | IP40 |
Terminal Type | PCB |
Actuator Shape | Rectangular |
Contact Material | Silver |
Operating Temperature Range | -20 → +100 (Terminal Side) °C, -20 → +55 (Actuating Side) °C |
Panel Cut Out Size | 19.8 x 12.9mm |
Maximum Operating Temperature | +55 (Actuating Side) °C, +100 (Terminal Side) °C |
Contact Resistance | <100mΩ |
Mechanical Life | 50000Operations |
Minimum Operating Temperature | -20 (Actuating Side) °C, -20 (Terminal Side) °C |
Case Material | Polyamide |
AC Voltage Rating | 250V |
