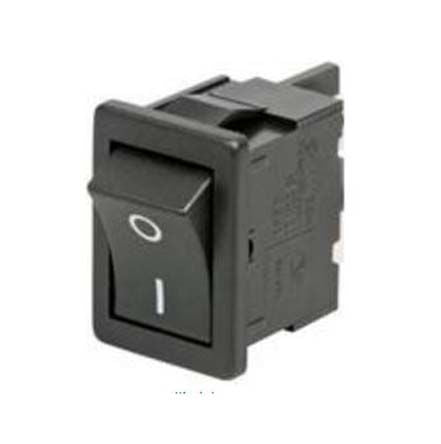

Marquardt Double Pole Single Throw (DPST), Momentary Rocker Switch Panel Mount [1802.2504]; 907-0562
by Marquardt
0₫
Mã kho: 9070562
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 19.2mm |
| Panel Cut Out Height | 21.9mm |
| Contact Current Rating | 0 |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Terminal Type | PCB |
| Legend Text | On (symbol); Off (symbol) |
| Actuator Shape | Rectangular |
| Legend Text Colour | White |
| Minimum Operating Temperature | -20 (Actuating Side) °C, -20 (Terminal Side) °C |
| Operating Temperature Range | -20 → +100 (Terminal Side) °C, -20 → +55 (Actuating Side) °C |
| Mechanical Life | 100000Operations |
| Contact Resistance | <100mΩ |
| Maximum Operating Temperature | +55 (Actuating Side) °C, +100 (Terminal Side) °C |
| Panel Cut Out Size | 19.8 x 21.9mm |
| AC Voltage Rating | 250V |
| Contact Material | Silver |
| Case Material | Polyamide |
