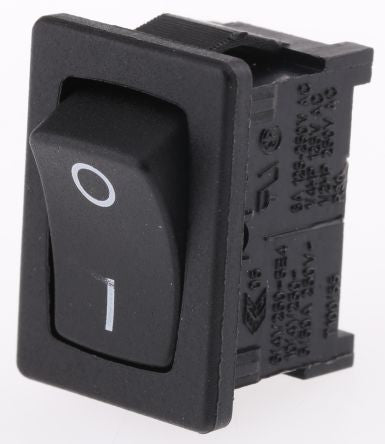

Marquardt Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [1801.6115]; 741-0924
by Marquardt
0₫
Mã kho: 7410924
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Switch Operation | On-None-Off |
Panel Cut Out Width | 12.9mm |
Panel Cut Out Height | 19.2mm |
Contact Current Rating | 0.416666666666667 |
Illuminated | No |
Actuator Colour | Black |
Mounting Type | Panel Mount |
IP Rating | IP40 |
Terminal Type | Solder |
Legend Text | On (symbol); Off (symbol) |
Actuator Shape | Rectangular |
Legend Text Colour | White |
Panel Cut Out Size | 19.4 x 12.9mm |
Minimum Operating Temperature | -20°C |
Contact Resistance | 100mΩ |
AC Voltage Rating | 250V |
Contact Material | Silver |
Case Material | Polyamide |
Operating Temperature Range | -20 → +55°C |
Maximum Operating Temperature | +55°C |
Mechanical Life | 100000Operations |
