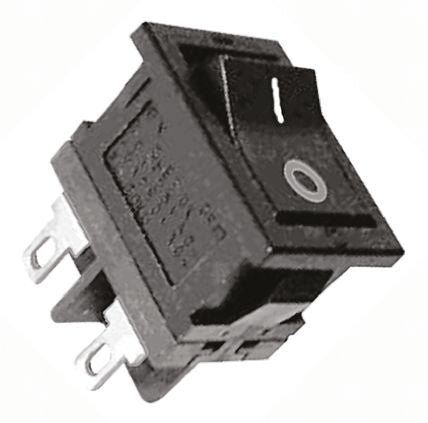

Copal Electronics SPST, On-Off Rocker Switch Panel [SLE6A-9]; 223-890
0₫
Mã kho: 223890
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPST |
| Switch Operation | On-Off |
| Panel Cut Out Width | 12.9mm |
| Panel Cut Out Height | 19.4mm |
| Contact Current Rating | 4 A @ 250 V ac, 6 A @ 125 V ac |
| Actuator Colour | Black |
| Mounting Type | Panel |
| Terminal Type | Solder |
| Maximum Operating Temperature | +85°C |
| Contact Resistance | 20mΩ |
| Minimum Operating Temperature | -25°C |
| Panel Cut Out Size | 19.4 x 12.9mm |
| Operating Temperature Range | -25 to +85°C |
