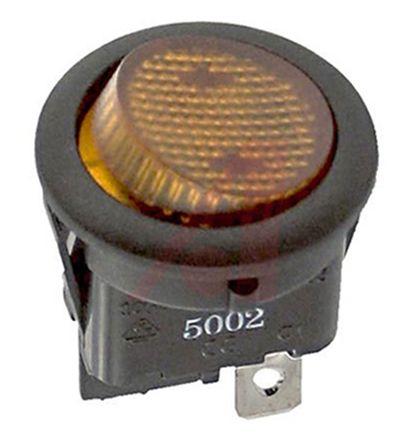

Cherry Illuminated Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [RRA22H3BBALN]; 868-1519
by Cherry
0₫
Mã kho: 8681519
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Switch Operation | On-None-Off |
Panel Cut Out Diameter | 20mm |
Contact Current Rating | 0.416666666666667 |
Illuminated | Yes |
Actuator Colour | Amber |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Actuator Shape | Round |
Case Material | Nylon 66 |
Contact Resistance | 20mΩ |
Panel Cut Out Size | 20 (Dia.)mm |
Operating Temperature Range | -20 → +85°C |
Mechanical Life | 100000Operations |
Minimum Operating Temperature | -20°C |
AC Voltage Rating | 125 V, 250 V |
Contact Material | Silver Alloy |
Maximum Operating Temperature | +85°C |
