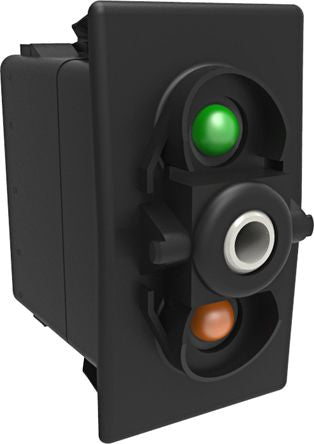

Carling Technologies Illuminated Single Pole Single Throw (SPST), On-On-On Rocker Switch Panel Mount [VED2GHNC-00000-000]; 913-3099
0₫
Mã kho: 9133099
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-On-On |
| Panel Cut Out Width | 21.08mm |
| Panel Cut Out Height | 36.83mm |
| Contact Current Rating | 20 A |
| Illuminated | Yes |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP66, IP68 |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Contact Material | Silver, Silver Alloy, Silver Tin Oxide |
| Panel Cut Out Size | 36.83 x 21.08mm |
| Case Material | Polyester |
| DC Voltage Rating | 12V |
| Mechanical Life | 150000Cycles |
| Contact Resistance | 10mΩ |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
