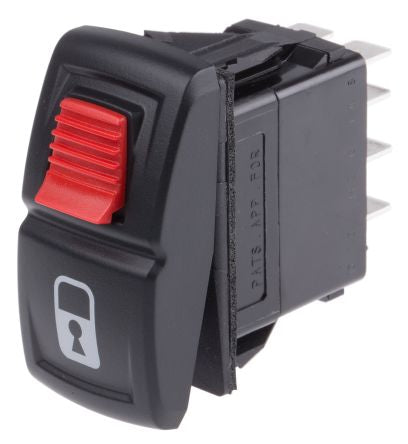

Carling Technologies Illuminated Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [V4B2HWVC-FDALAV-1]; 111-6554
0₫
Mã kho: 1116554
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-(On) |
| Panel Cut Out Width | 21.08mm |
| Panel Cut Out Height | 36.83mm |
| Contact Current Rating | 15 A |
| Illuminated | Yes |
| Actuator Colour | Red |
| Mounting Type | Panel Mount |
| IP Rating | IP66 |
| Terminal Type | Quick Connect |
| Lens Shape/Symbol | Lock/Unlock (Symbol) |
| Actuator Shape | Rectangular |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 100000Cycles |
| Operating Temperature Range | -40 → +85°C |
| Panel Cut Out Size | 36.83 x 21.08mm |
| Contact Resistance | 10mΩ |
| DC Voltage Rating | 28V |
| Minimum Operating Temperature | -40°C |
| AC Voltage Rating | 125V |
| Contact Material | Silver Alloy |
