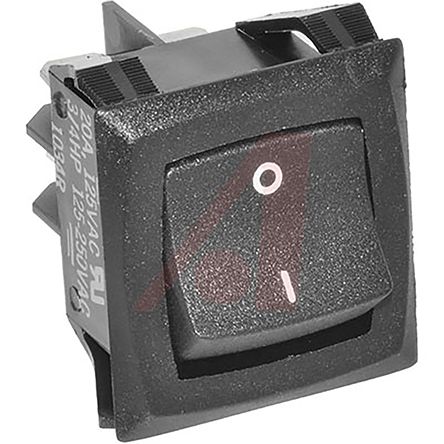

Carling Technologies Double Pole Double Throw (DPDT), Latching Rocker Switch Panel Mount [RGSCC201-R-B-B-E]; 881-5194
0₫
Mã kho: 8815194
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 28.58mm |
| Panel Cut Out Height | 25.4mm |
| Contact Current Rating | 20 A |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Legend Text | On (symbol); Off (symbol) |
| Actuator Shape | Rectangular |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver |
| AC Voltage Rating | 125V |
| Case Material | Nylon |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Mechanical Life | 100000Operations |
| Panel Cut Out Size | 25.4 x 28.58mm |
