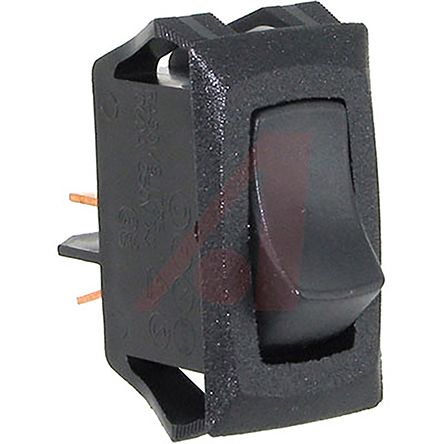

Carling Technologies Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [RA911-RB-B-0-N]; 881-5175
0₫
Mã kho: 8815175
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Switch Operation | Latching |
Panel Cut Out Width | 28.58mm |
Panel Cut Out Height | 13.97mm |
Contact Current Rating | 16 A @ 125 V ac |
Actuator Colour | Black |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Actuator Shape | Rectangular |
Operating Temperature Range | 0 → +85°C |
Panel Cut Out Size | 13.97 x 28.58mm |
Minimum Operating Temperature | 0°C |
Mechanical Life | 100000Operations |
Maximum Operating Temperature | +85°C |
AC Voltage Rating | 125V |
Case Material | Nylon |
